1960 Urago (Part II)

The older they are, the trickier they get.

1960 Urago

1960 Urago

French bicycles. Quirky frames, oddly sized components, backward threading. Generally speaking, French bicycles and French parts are a cantankerous lot. But, this Urago was a quite bit older than the French frames from the 80’s I have rehabilitated in the past. The age made component sourcing a bit more challenging and the “Frenchy’ness” of the experience even more pronounced.

There was so much to like when I acquired the Urago. All original. Original owner. All French. Although, the frame had been repainted sometime in the 80’s. And the drivetrain was a little odd (more below). And the headbadge was missing (now recreated). But, the owner had stories of rides and clearly had taken good care of the machine. After the purchase and breakdown, the true breadth of the project started taking shape.

  1. Pivo “death stem”
    Pivo made stems ranging from the 60’s through the mid-70’s. Some were made of cast aluminum some were forged aluminum. Some were very well while others were dangerous junk. The most common failure point happened as a crack at the top of the expander split in the quill. The crack would continue around the quill until the stem broke off. And that was what one would call catastrophic failure.
    This had to be remedied. A handful of mid to higher-end French stems exists but an alloy Philippe seemed to be the best choice. The coveted Mil Remo dropped into my lap although it took polishing and painting handwork to bring out the true beauty.
  2. Tape technique
    Taping the bars for Mafac brake levers are different than more modern levers. Nothing difficult but before I went at it, I had to decide if I wanted to do the “racer style” or clean look. The racer style, to me, seems more about brevity whereas the wrap simply goes around the base of the hoods. Quick and effective. The clean look is exactly that but it takes a little more finesse. After perfectly positioning your levers, securing the metal posts and hangers, then removing the levers so you can wrap the tape tightly around takes a bit longer and more attention to detail. But, it’s oh so clean looking. Most just want to get back on the saddle so I can understand how the racer method came about.
    As for the tape, I still wanted good texture and less shine from the Newbaums so it only received 2 coats of shellac whereas the twine and corks got 5 coats of shellac to seal them up tight.

    Details matter. Anchorage Brewing has a nice snowflake-like design of hops adorning their corks along with lovely barrel fermented beers in their bottles so using their corks was a no brainer. Sure, it’s far from a French Bordeaux but I believe the Urago craftsmen would still approve.

  3. Seatpost search
    25.4mm seatposts aren’t typically the norm and finding a 1960’s French, 25.4mm that wasn’t a boring ‘ole aluminum post was tricky. I wanted to stay as French as possible but choices were limited. Time passed but luck eventually prevailed. I acquired a Campagnolo San Marco GS which fit perfectly and polished up with a smooth, consistent and beautiful luster that only higher quality alloy can. The drivetrain and shifters were Campagnolo as the bicycle was purchased. Since this was the defacto standard during that time, it didn’t bother me to bypass the French competitors of the day and extend the Campagnolo equipment to the seatpost too.
  4. Visual interest
    The dark blue paint was done well but it needed just a little pop and the ornate, swooping, Nervex lugwork begged to be highlighted. I added gold lug lining for some regal flair.

  5. Crank Bolt Bolstering
    The sought after Stronglight cranks mated wonderfully with the Spécialités TA chainrings, as expected. But, with a small bit of alteration, the bolts can be upgraded. Why? Because, although TA chainrings are fantastic, the TA hardware is really of exceptionally poor quality. Nearly pot metal. Plus, they break frequently. Usually while one is 20+ miles from home. Nice, solid, robust bolts are available from Velo Orange made with chromed metal and love. Plus, the whole package just looks better. A highly recommended upgrade.
  6. Drivetrain mayhem
    What is shown in my images are a pair of modest and fairly standard 50 and 40 tooth TA chainrings. Originally, the Urago was mated with a monstrous 58 tooth TA chainring. The largest I had ever seen in person. When I asked the original owner about this oddity, he replied, “I went through a phase where going fast was more important than distance. I once hit 60+mph going down San Marcos Pass Road outside of Santa Barbara. I know the speed because I pulled up along side a car and look at their speedo. The driver was in visible shocked as I passed him. All this on sew-up tires. I also received two speeding tickets in Santa Barbara, going 35mph in a 25 zone.For the San Marcos run I had a 64 tooth chainring (64-13) so I needed the swingarm to pickup the slack. (I eventually removed and sold the 64)”. The “swingarm” comment segues perfectly into the rear derailleur. With such a massive chainring, a long cage derailleur was needed. Being the owner was from California, he had access to the Cupertino Cyclery. This is where he purchased a now legendary and fable-like Spence Wolfe long cage derailleur (pictured below). This type of derailleur was quite specialized and distinctive blending a Campagnolo Nuovo Record upper body with a Simplex Tourist 303 lower along with a long and hefty, chromed “arm” that tied them together. Although a unique and noteworthy piece of history, I swapped it out for a beautifully cast and period appropriate Campagnolo Record rear derailleur.
1960 Urago

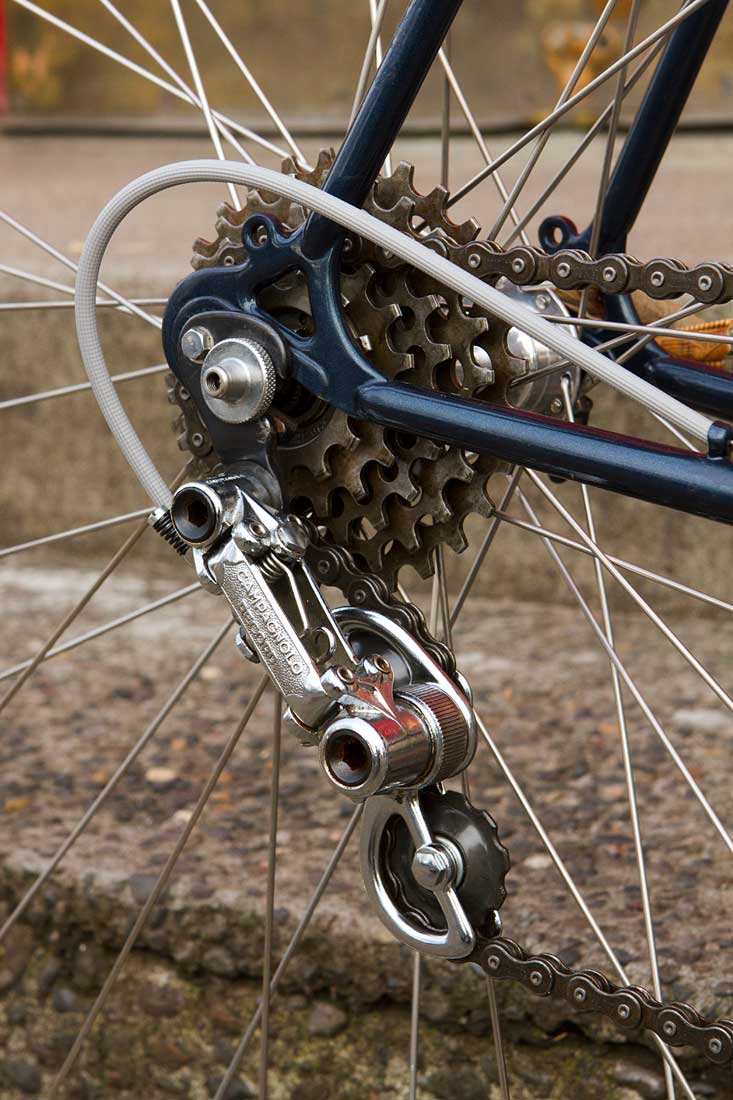

A flawless Campagnolo Record derailleur adorns the rear drivetrain

7. Frame woes
Only after substantial time with the Urago did I notice that the rear drivetrain dropout had been cut at some point. It is quite a shame that the removal happened as the way the dropouts were machined gave one perfect hand placement to slide the rear wheel into position using both forged ends as finger placement.

With the snags out of the way, this left only a handful of updates left. The original no-name alloy rims were replaced by a set of new handbuilt wheels. The original French Prior hubs were cleaned, polished and rebuilt then mated to modern rims by Soma that look, and perform, likely better than the no-name brand rims originally on the Urago.
The Simplex skewers are painfully gorgeous with their imperfections and proper 60 year old patina. They have a wonderfully smooth open and close action on them with a large, textured nut on the non-ratcheting end that is a joy to hold while tightening the whole bundle up.

Both the Lyotard pedals, which were overhauled and spin like new, and Ideale saddle are original to the build. Both very French… and proud of it.

Color: Dark blue metallic
Frame Size: 62cm (C-T) seat post & 59cm (C-C) top tube
Frame/Drop-outs: Reynolds 531/Simplex
Fork: Reynolds 531
Bars: Belleri Saint Etienne
Bar Wrap: Newbaums red cloth and twine; Cork bar plugs
Stem: Philippe Mil Remo
Headset: Stronglight
Saddle: Ideale 52 Professional
Seat Post: Campagnolo San Marco GS
Crankset:
Stronglight 49D; TA chainrings 50/42; 170mm
Front Derailleur: Campagnolo Nuovo Record
Rear Derailleur: Campagnolo Record
Shifting Levers: Campagnolo
Brake Levers: Mafac Competition; Rustines half hoods; Gum
Brake Calipers: Mafac Racer; Kool-Stop pads
Cable and Housing: Vespa textured with stainless core; Gray
Freewheel: 5-Speed Regina GS Course (13/17/21/25/29)
Chain:
Brampton
Hubs:
Prior; Parallax 110
Wheels: Soma Eldon; 700c; 36 hole; Simplex skewers
Tires: Grand Bois Cerf blue label; Skinwall; 700c x 26
Pedals/Cages: Lyotard 460 Course; Christophe Special cages and straps
Special Features: Dropout finger pulls; Eyelets front/rear

© Josh Capps and The Simplicity of Vintage Cycles. Unauthorized use and/or duplication of this material without express and written permission from this site’s author and/or owner is strictly prohibited. Excerpts and links may be used, provided that full and clear credit is given to Josh Capps and The Simplicity of Vintage Cycles with appropriate and specific direction to the original content.


8/16/20
Urago Update

It is with no great pleasure that provide the following update on the next chapter of the Urago’s life.

Greeted with a cheerful and peppy email from Justyne Rayne, the owner of the Bike Recyclery, a Portland-based, one-woman, “high-end used bike and part” shop, we exchanged numerous emails about her purchasing the Urago. She explained her desires for the Urago, asked a few questions, and I was offered a tentative figure over email, assuming it fit and if it would “plane” for her. We agreed on a sale price and with it, I even provided an 80-mile delivery, free of charge.
The transaction was only slightly awkward, as protesters were literally taking to the streets around us, occasionally breaking up our 6’ distanced transaction. After some tire kicking, a slightly lowered price was agreed upon. But, even with the lower price, I wasn’t bothered by it because this crown jewel was going to a person who knew how to handle, and care for, a bike of this status. It wasn’t just going to any yahoo off the street. I smiled as I hummed along the interstate beginning my 90-minute drive home knowing she was in good hands.

Over two-months passed by and the transaction popped into my mind. Knowing the Bike Recyclery is a seller of vintage parts, and since I now knew the seller, I thought I’d give the site a look to see if anything caught my eye. Starting with the “Just In” page. To my absolute horror, I found numerous remains, scattered around, of the now chopped up Urago. Each piece, basking in professional studio lighting and high-resolution, lavishly saturated color and bathing in silky marketing language.

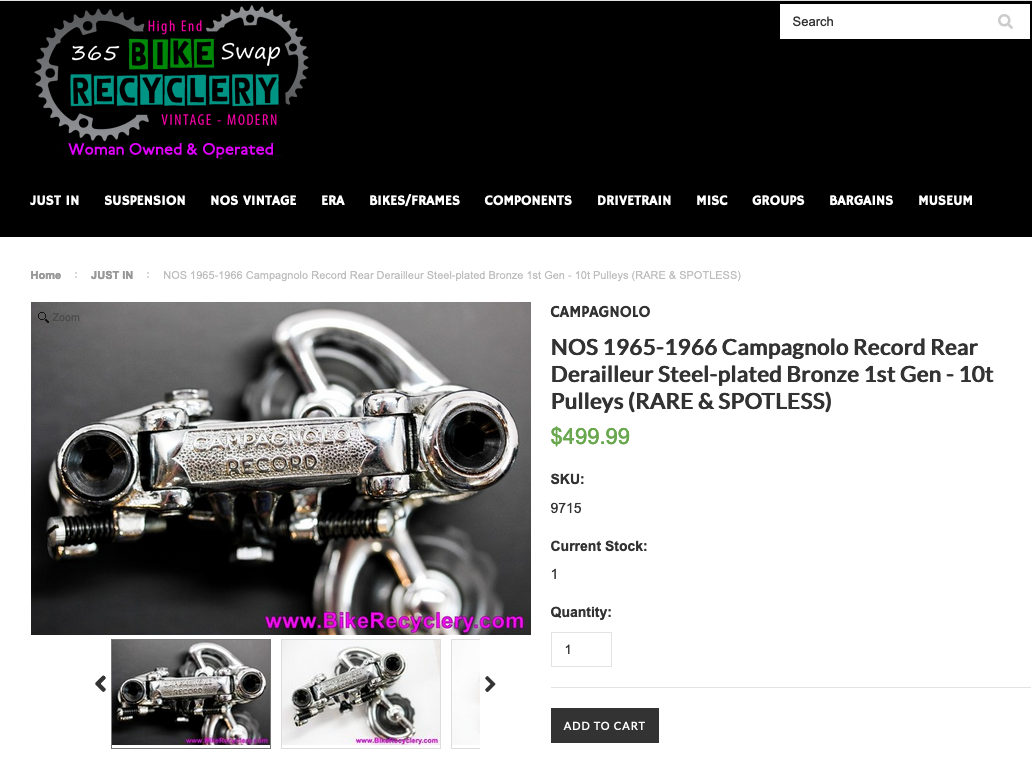

The entire drivetrain, from the bottom bracket and derailleur’s to the crank and shift levers, were all up for sale. The brake levers, hoods (separate, of course), headset and stem… up for sale. One of the last remaining items that was original to the bike, the wonderfully loved and gently used, Ideale 52 Professional, as stately as ever, was ready for your purchase. And to make certain to squeeze every last drop out of the fine steeds pillage, even her shellac cork bar plugs were, you guessed it, up for sale. For $30, no less! Beer bottle corks from a couple of Anchorage Brewing bottles. A waste product from beer that I drank, then made useful, for $30. This, dear friends, is capitalism at its finest.

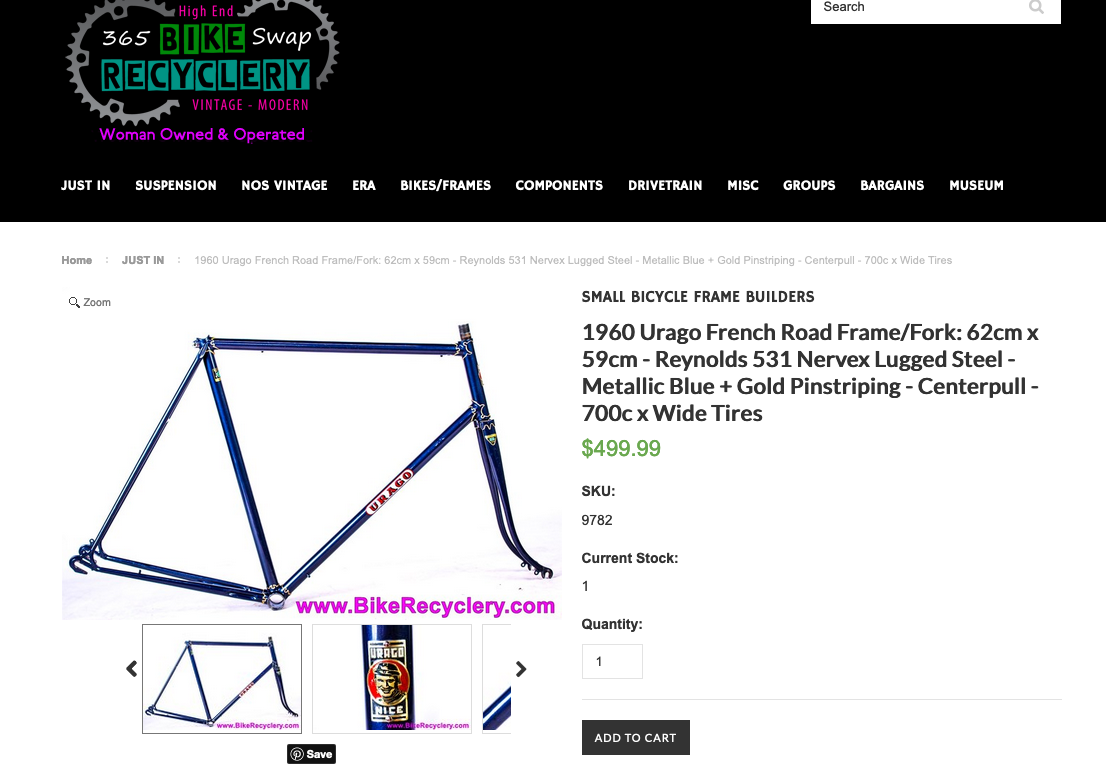

Of course, the most important item of all is for sale too. The frame waits for your instant purchase, waxing poetic of history, frame potential and its large window of fit.

With everything now out in the open, it is still unclear to me if this bike was only purchased to tear down and snatch up the choice bits for use on a personal bike or if maybe all the “chips, scrapes and scratches” were enough to cast this ‘ole gal aside for something more pristine than expectations from a 60-year old bicycle.

It’s not the fact that I was lead to believe this was to be an infrequently ridden, French gem, or that the sale prices for the components were tremendously higher than what I paid for them ($500 for a used, but well-cleaned, mid-60s Campagnolo Record derailleur?! Yikes! I paid $92, shipped). It’s not even the assumptions that irk me in some of the component ads. Mostly minor words like “NOS” tossed in. Lucrative for a sale but nonetheless, false. Though, it does bring me sadness knowing a buyer will know no better. Unless the rims are sold as they were the only new component on the build.

Those things I can shake off.
That’s how you make money on a bike. Part it out. I get it.
What stings the most is the care, time and money I poured into the Urago. Hours of not only restoring but research, contacting others for information and purchasing, what I considered, the most appropriate part for the build. Only to have a freshly assembled bike physically pulled apart for no good reason.

The situation is unfortunate. My only hope now is that someone, with noble intention and a lust for putting the time in, will purchase the Urago frame and one day, images of this fully built beauty will arrive in my inbox, looking as dashing as ever in new clothes of an even higher pedigree erasing this revolting moment in time and starting anew.

10 comments on “1960 Urago (Part II)

  1. ryansubike
    January 23, 2019

    Interesting Project, especially with the French “challenges” My late 70s Moto GT has brake levers that mount that way with the bolt into the handlebar, unique. Looks like it came out beautifully as usual Josh.

    • Josh C.
      January 23, 2019

      Thank you! You are too kind, Ryan.
      I downplayed quite a few of the challenges in my post but some had me a bit frustrated. As I was making my way through this project, I’d mutter to myself, “NEVER again will I buy another French bicycle”.
      Then, well before I was even finished with the Urago, I ended up purchasing a 1950’s, hand-built French frame straight from a contact in France. So, the old adage of “never say never” certainly came full circle for me, rather quickly.

  2. Nola Wilken
    January 24, 2019

    That’s a very interesting and lovely machine. A fine restoration job! Regarding the cut dropouts: looks like the previous owner wanted to get rid of the Simplex dropout so that they could have other derailleur mounting options using a claw. Not such a bad thing. I kind of like that Spence-Wolf long cage derailleur – do you still have it?

    • Josh C.
      January 24, 2019

      Thanks for the accolades, Nola!
      I’ve done a little investigation into the cut dropouts and yes, essentially, it did come down to mounting options. In Europe in the early 60’s there were 3 different styles of dropouts with integral derailleur hangers: Huret, Simplex and Campagnolo which by the mid 70’s became the de facto standard. Huret and Simplex intentionally designed their dropouts to be incompatible with derailleurs made buy other manufacturers. The idea being that it would insure market share for their companies.

      As for the Spence Wolf, I ended up selling it to a collector as although it was unique, rare and interesting, I didn’t/don’t have any use for it now or in the distant future. Plus, I know it is already being put to good use whereas I would have kept it entombed in a plastic bag, resting with other derailleurs until I “discovered” it again a few years later.

      Likely, I’ll come to kick myself for letting it go but for now, it feels like it was the right thing to do.

  3. whisper2scream
    January 24, 2019

    As I noted on Twitter, this bike is gorgeous. You do remarkable work. Thank you for sharing your story. Well done. I’d have a hard time parting with this one.

    • Josh C.
      January 24, 2019

      I certainly appreciate such humbling comments! This one did take much longer than usual for a few reasons but it’s nice to have it buttoned up and ready to hit the asphalt again.
      I have a number of bikes and one can only ride so many in a season. Sadly, this one must go. But, at least now it’s ready for years of trouble free riding whereas before, it was far from road worthy. I’m excited to see who will get this one!

  4. Kris Kooler
    February 1, 2019

    Josh great restoration on your French beauty….and the real beauty of old these old French bikes is their oddity! Makes for a fun challenge to the repairs and restorations correct.
    One thing I did notice is the missing delrin plastic mini wing nuts on the nut side of the Simplex quick releases. These fit over the steel nuts and thread on to the end of the skewer axle…..they assist in fine adjusting the thightness of the nut. Just an observation based on the same Simplex quick releases on my 69 PX-10e.
    Hey who did the the paint and decals? Original?

    • Josh C.
      February 1, 2019

      Agreed, Kris. The challenge is the agony and ecstasy. And in the end, it’s usually blissful, especially once the kinks are worked out and the final product is ready to hit the road. And especially when you don’t have any nagging, back-of-the-mind thoughts that you took a shortcut or didn’t put a full effort in. I’ve learned it will eat at me day and night until I make it proper. So, no short cuts here!

      As you can see from the images, the rear skewer only has the metal, textured nut but the front skewer does have the plastic wing nut. Sadly, I don’t have any shots of it but I will have to give it a try and focus on the fine tuning aspect.

      Thanks for the good information!

  5. Gregory
    November 7, 2020

    Lovely restoration, followed along with interest on the Bikeforums classified post after you put it together! However, I don’t see why you are surprised to see someone who literally sells overpriced vintage bike parts on the internet market (and based in Portland no less) chopped up the bike for profit… It really should have been obvious that that’s the way things were heading once you started dealing with her! The bottle cork pricing is hilarious… Capitalism at its finest, indeed!

    • Josh Capps
      November 7, 2020

      Hi Gregory,

      Thanks for the kind remarks on the restoration and honestly, you are totally correct. Why/how I didn’t see this coming really was a miss on my part. I even got a little taste of the buyer’s crafty angles 5 years prior when she sent me an email waxing poetic about her NOS Pinarello Montello that was a “display bike at the 84′ NYC Bike Show, where it was used to introduce the prototype C-Record group to the bike industry for the first time in the US.” She wanted to use the “Tell Your Story” section of my site to get the word out to the cycling community. She already had the story and images ready too! The link she provided showed that plus that it was for sale. I informed her that I loved the bike and story but was not interested in mentioning the bike was for sale as I didn’t want to use my site as a platform for selling her bike. After that was stated, surprise surprise, the communication ceased completely.

      I guess when she emailed with such gusto and enthusiasm, especially on ride quality and other questions you’d only ask if you were going to, you know, ride the bike, I took her at face value.

      Silly me…
